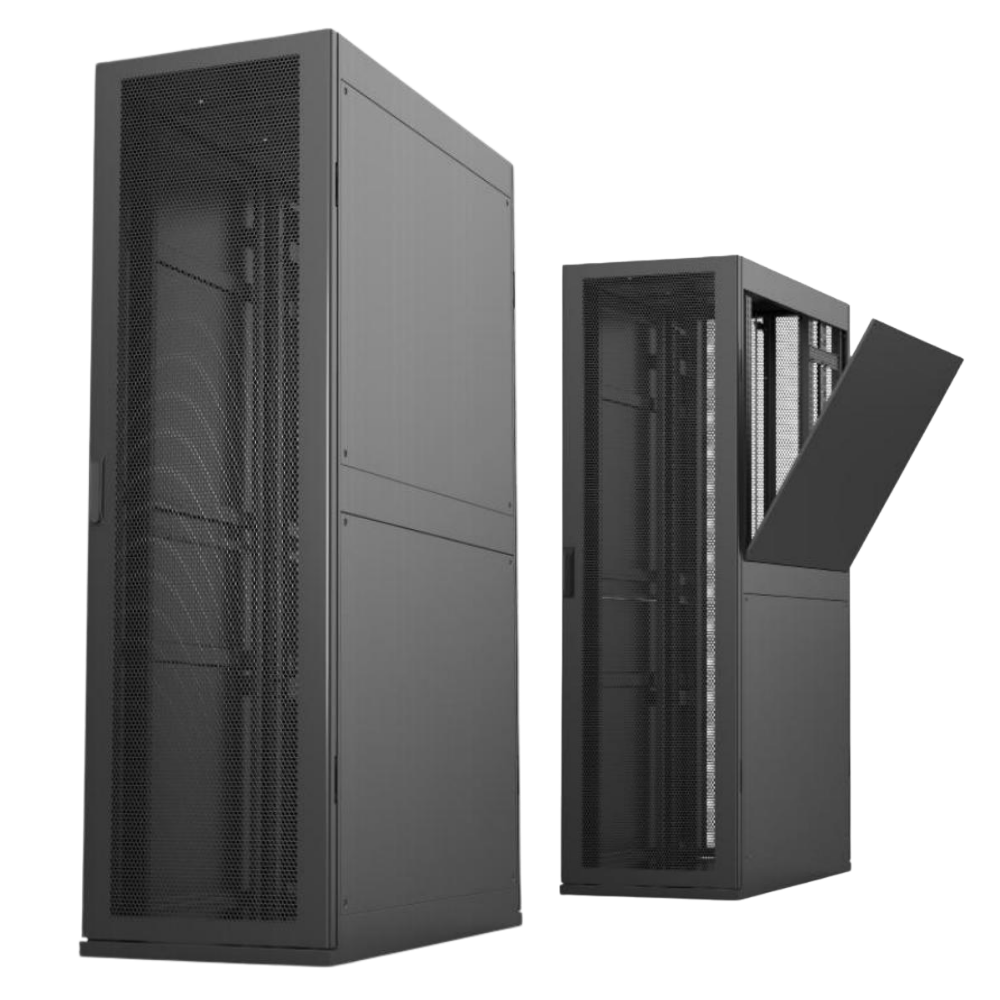

Longun-R Rack System

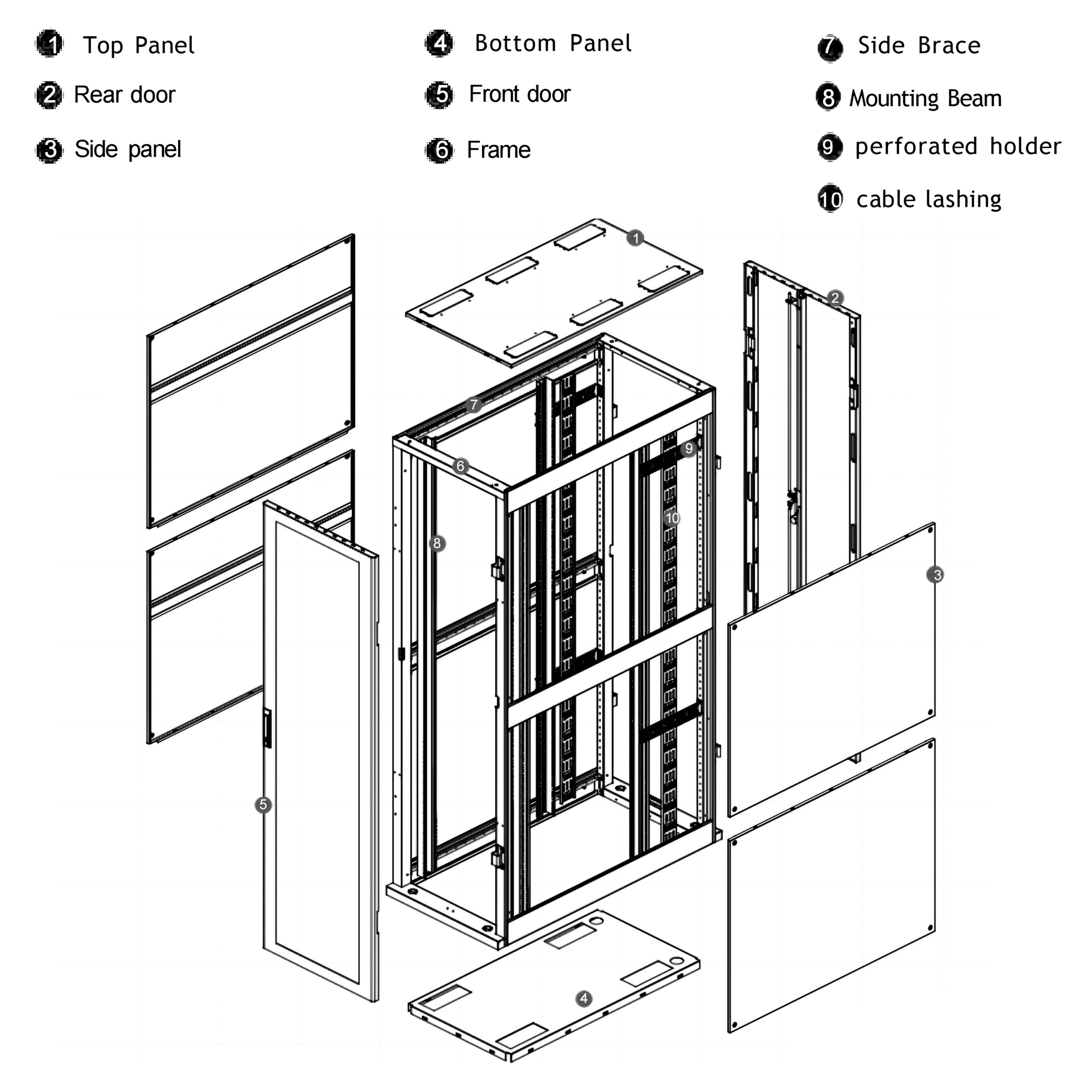

S/N	Parts name	Quantity	Unit	Material	Surface finish	Remark
1	Top panel	1	Piece	SPCC cold rolled steel t1.2	powder coated	—
2	Bottom panel	1	Piece	SPCC cold rolled steel t1.2	powder coated	—
3	Frame	2	Piece	SPCC cold rolled steel t1.5	powder coated	—
4	Side brace	6	Piece	SPCC cold rolled steel t1.5	powder coated	—
5	Vertical mounting rails	4	Piece	SPCC cold rolled steel t2.0	powder coated	—
6	Front door	1	Piece	SPCC cold rolled steel t1.2	powder coated	—
7	Rear door	1	Piece	SPCC cold rolled steel t1.2	powder coated	—
8	Side panel	4	Piece	SPCC cold rolled steel t0.8	powder coated	—
9	Cable lashing	2	Piece	SPCC cold rolled steel t1.2	powder coated	Optional
10	Spring lock	2	Piece	Zinc alloy	Black	With 2 keys
13	M6 Cage Nuts and Screws	40	Set	—	—
14	Cage nut hook	1	Piece	—	—

STANDARD

Comply with EIA-310-E, IEC297-2, DIN41491
PART1, DIN41494 PART7, GB/T3047.2-92 standard,
compatible with ETSI standard.

FEATURES

Various sizes and parts are available according to different application demand.
Welded frame, demountable structure design, light duty but sturdy and flexible.
Closed-able cable routing at top and bottom panel without tools.
Brush panel to prevent dust and outside things.
Two cable management rails are equipped at the rear of the cabinet for cable management for PDU assembly.
Embedded side panel, tool free in assembling and dismantling, lock is optional.
Front door and rear door can be interchanged quickly without tools, opening angle 130°, convenient for equipments installation and maintenance.
Rotary door handle, keys are universal to front and rear doors for all K series cabinets.
With cabinets connector. Complete accessories.
Provided with adjustable feet, maximum static loading is 1800kgs.
Surface treatment procedure is degreasing → pickling → anti-rust and phosphorization → water cleaning → powder coating.
RoHS compliant.
