Longun Hot Aisle Containment

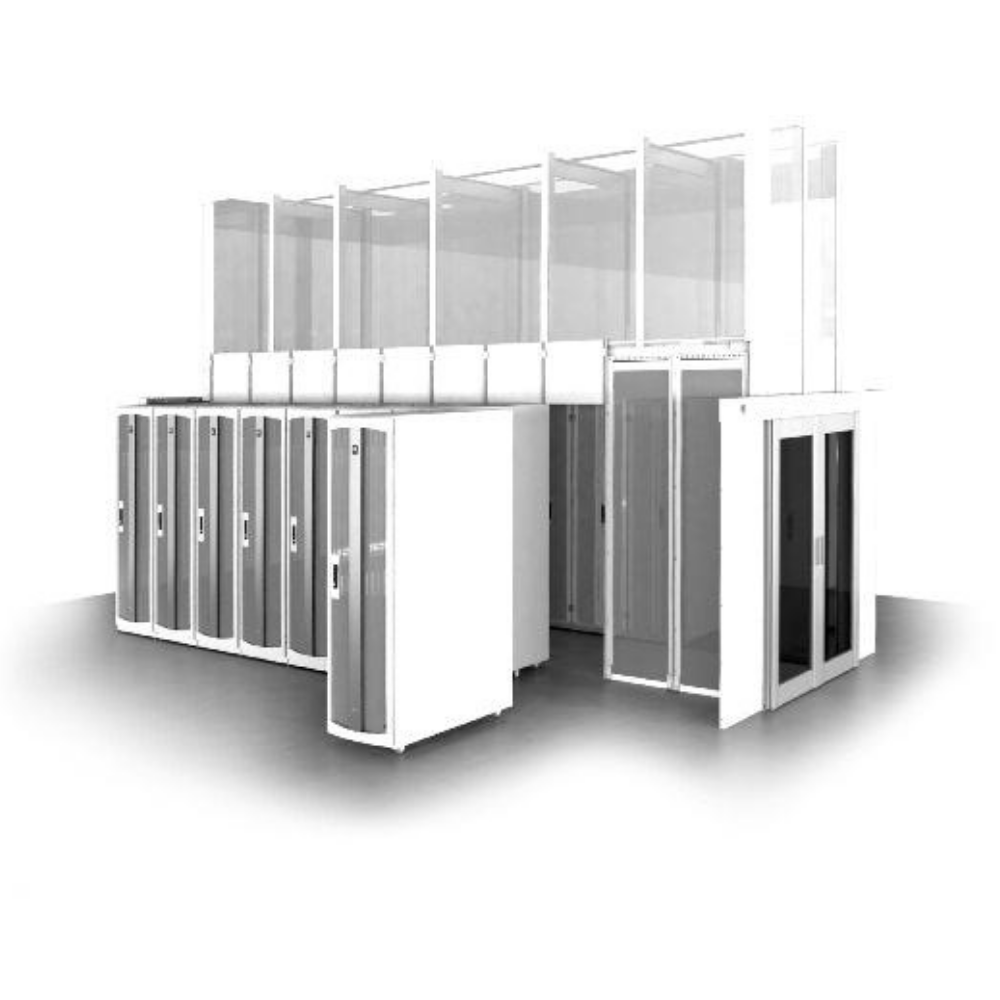

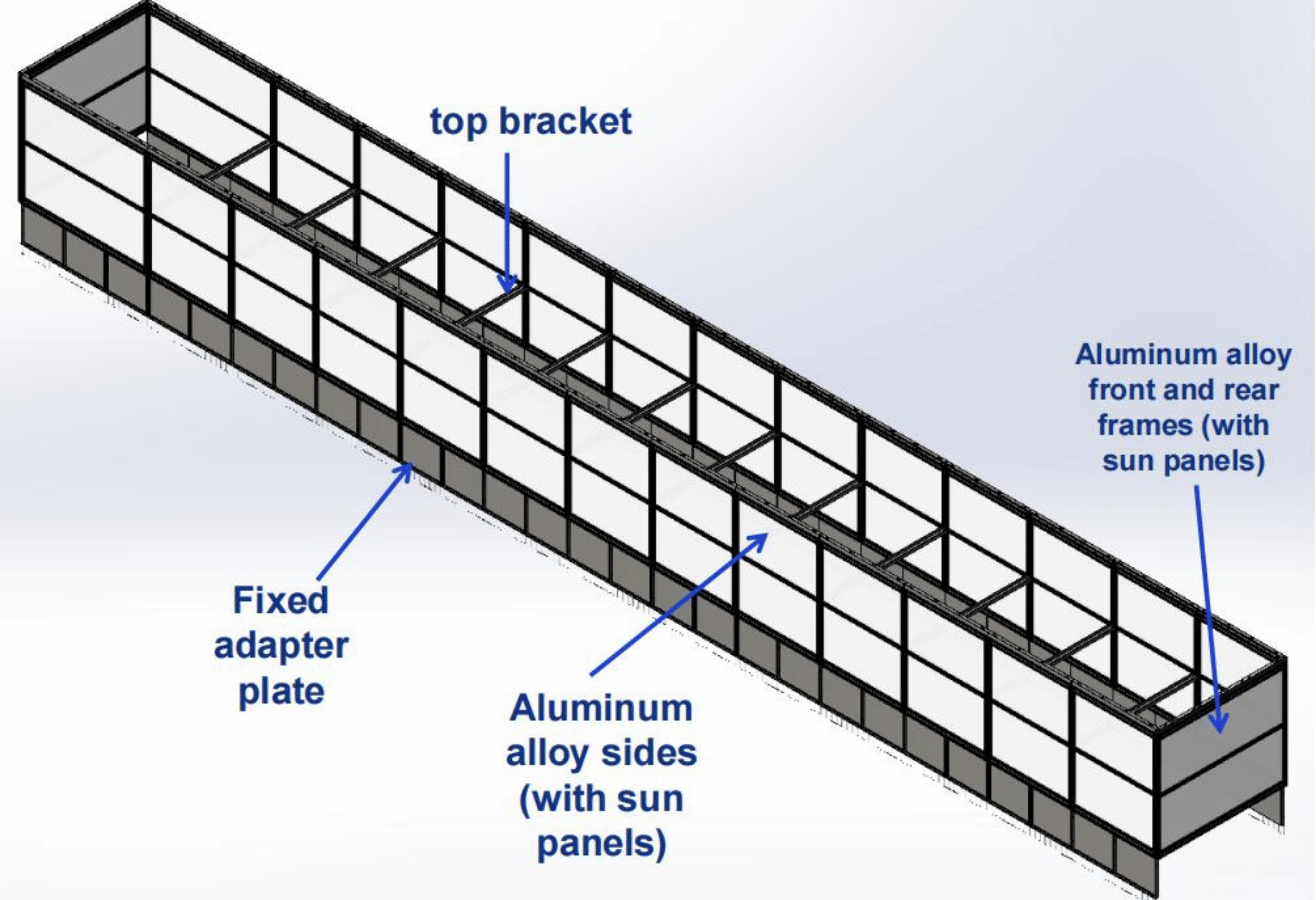

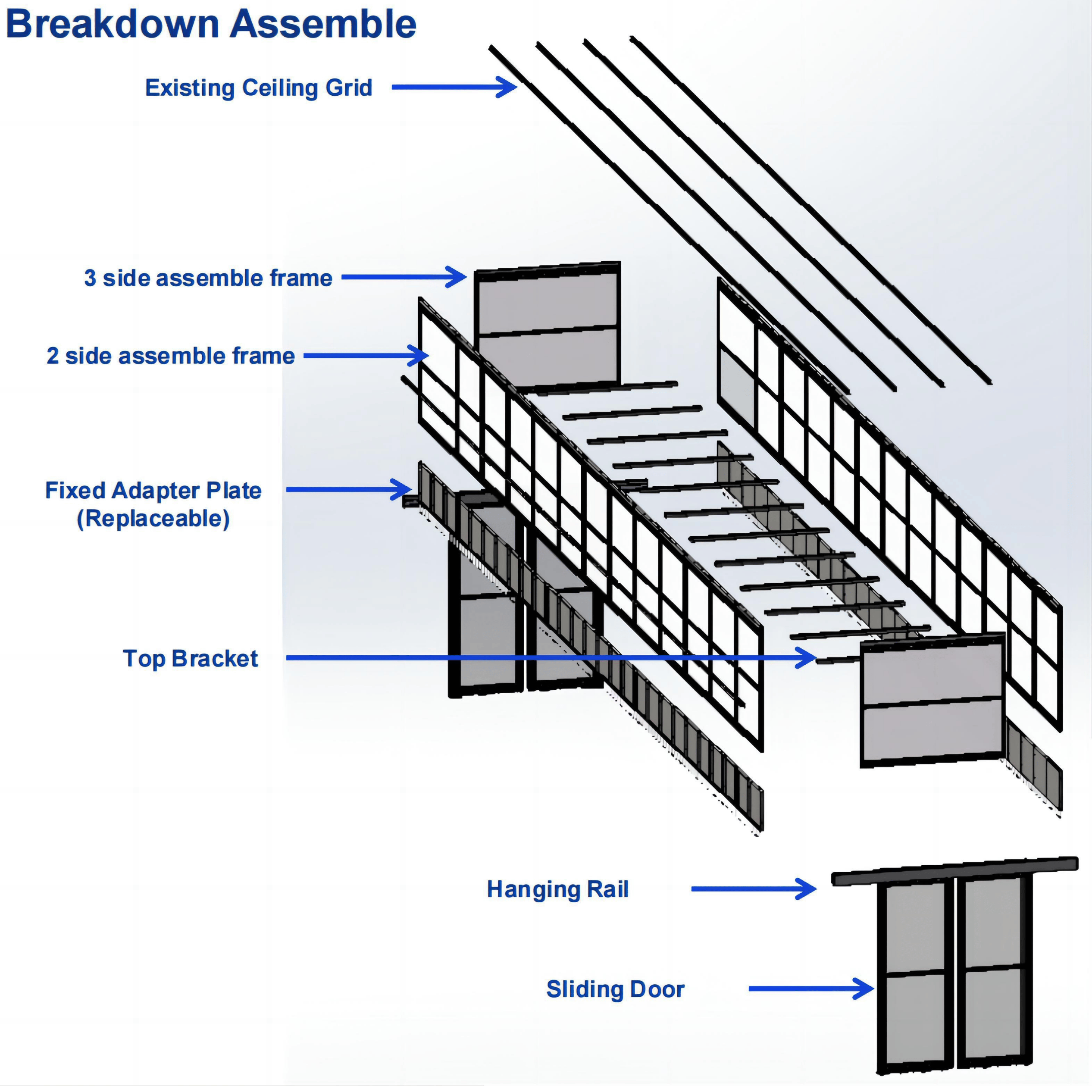

① Hot Aisle Containment – Cabinet-independent frame and translucent exhaust duct cover the contained aisle to capture and vent airflow out of the aisle. Used as part of a closed return for the air handling system.

② Edge Seal – Flexible, curved seal used around the top of the duct to complete seal with overhead drop ceiling tiles.

③ Aisle Containment Double Door Assembly – Sliding double doors with automatic closing features and large transparent panels. Attaches to the ends of the Frame Supported Exhaust Duct to seal the ends of the contained aisle (this system not compatible with Single Door Assembly).

④ Adjustable Height Filler Panel/Brush – Adjustable height panels/universal cabinet end panel or brush used above standard equipment cabinets to seal gaps between the 52U Frame Supported Exhaust Duct and the cabinets. Alternately, Universal Cabinet End Panels adjusts in both height and width.

⑤ Full Height Blanking Panel – Translucent panel and seal used to fill gaps where entire cabinets are omitted from the cabinet row. Easy to trim to match required width. Supports “roll-in/roll-out” deployment and variable length cabinet rows created when cabinets of differing widths are deployed in the same row.

SOLUTION OVERVIEW

• Flexible frame supported duct installed before the cabinets allows you to add, remove or omit cabinets as required
• Compatible with virtually any mix of cabinets; any width and heights
• Large spans with 12’(3 m) to 20’(6 m) clearance between frame support posts for bayed cabinets
• Built-in height, width and depth adjustments on frame beams, lateral supports and panels accommodatesitedifferences and existing conditions reducing the need for complex, time-consuming, field modification or specialordered parts
• Translucent duct and transparent door panels allow light to enter the contained aisle
• Doors close automatically to maintain containment and reduce recovery time
• A complete solution maximizes performance with baffles to seal around and within cabinets and the contained aisle
• Durable construction and maintenance-free design provide years of use

FEATURES & BENEFITS

• No threshold design prevents tripping
• Factory installed perimeter compression gasket system
• Sturdy aluminum supports
• Custom attachments (locks, stays)
• Side panels attach easily
• Easy installation
• Ergonomically designed with angled handles to reduce pinch points
• Auto-close option available

MULTIBALL POLYCARBONATE FOR THE WALL PANEL

• Semi-transparent
• Compliant to the new NFPA 75 2013 requirements
• ASTM E-84 and ASTM D-635 listed
• 8mm thick with edge-sealing gasket

FEATURES & BENEFITS

• No threshold design prevents tripping
• Perimeter compression gaskets efficiently seal and minimize air leakage
• Sturdy aluminum framing
• Clean panel option adheres to NFPA codes
• Ergonomically designed with angled handles to reduce pinch points
• Easy installation with integrated door slide locks

HARDWARE

Standard features include:

• Door slide locks
• Door stop bumpers
• Angled door handles
• Spring-loaded double ball door catch
• Auto-close available

WEIGHT

• 200 lbs (91kgs) – Clear polycarbonate
